Charging options

There are versatile charging options for the Shell™ system, meaning that a simple Shell™ for private users can later be turned into a professional industrial tablet. Below are the series solutions. If you have special requirements, please contact us directly.

To the products
Document

For private users, the ability to charge the tablet in the housing via the Apple-style Lightning connector or the standard connector is usually sufficient. To do this, the supplied waterproof plug is opened and the charging connector is plugged into the tablet. Please note that the Shell system is not waterproof during charging. Only after removing the charging connector and closing the plug does the housing become waterproof again. For once-a-day charging, this effort is acceptable.

Document aiShell Kabel

If the iPad is to be charged in a waterproof case, the first option is the Charging Connector. It is screwed to the housing and has a USB (A-male) plug at one end, which can be connected to the Apple power supply, for example. No tools are necessary for this. This solution is often used by sailors who only screw on the plug once a day. The cable end with the USB plug is not waterproof.

Scroll-triggered Video Play

Car-Cradle Connector

For professional use, the Car Cradle Connector is available. It is permanently screwed onto the housing in a waterproof manner (no tools required). With this accessory, the Shell can be inserted into the various charging stations below and charged there. When the Car Cradle Connector is screwed onto the aiShell or GoShell, the tablet can no longer be removed.

Scroll-triggered Video Play
aiRack ohne Cases aiRack 1 Cases aiRack 2 Cases aiRack 3 Cases aiRack 4 Cases aiRack 5 Cases aiRack 6 Cases aiRack 7 Cases aiRack 8 Cases aiRack 9 Cases aiRack 10 Cases

aiRack

Ergonomics and reliability are particularly important for professional users who need to charge many iPads at the same time. Typically, opening the aiShell™ case daily to charge is time-consuming and always poses a risk of damage. The aiRack provides a remedy here. Each aiShell™ is pre-equipped with a Car Cradle Connector (not included). This securely seals the housing against water penetration and is also compatible with the car cradle. To load, the aiShell™ is simply inserted from above into a free element of the aiRack. The connection is made automatically by spring contacts. The charging current is at least 2A per aiShell™. An aiRack-10 consists of 10 aiRack elements. This means that up to 10 iPads can be charged simultaneously in an aiRack. Equipped with rubber feet, the aiRack-10 can be placed on a table, for example.

3D-Illustration von CarCradle, welches ein aiShell hält

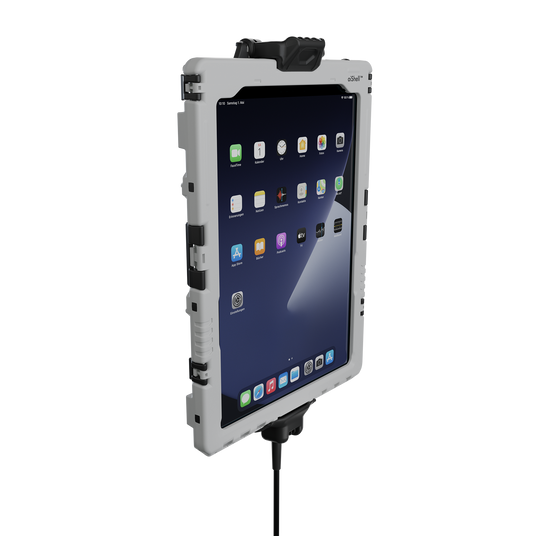

Car cradle

The Car Cradle is particularly useful for users who need to plug and unplug their device frequently during the day. That's why it is increasingly being used in fire service vehicles. If the Shell is equipped with the Car Cradle Connector, it can be automatically charged in the Car Cradle. With this solution, the housing does not have to be opened and therefore always remains waterproof. Like the Quicksnapper, the Car Cradle can either be screwed directly to walls/tables or mounted with a RAM-202 or many other RAM mounts. RAM mounts are not included in the standard scope of delivery.
