Description

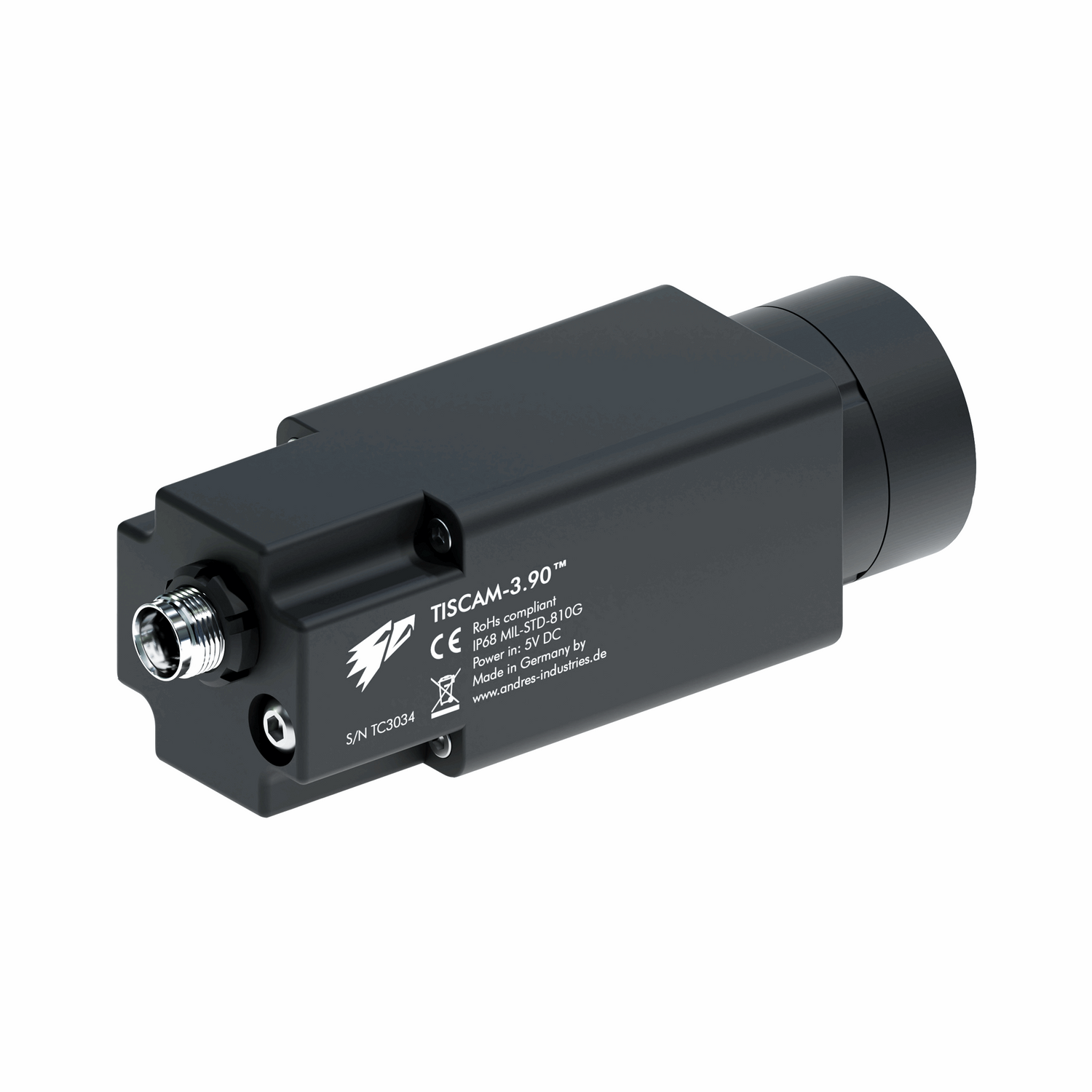

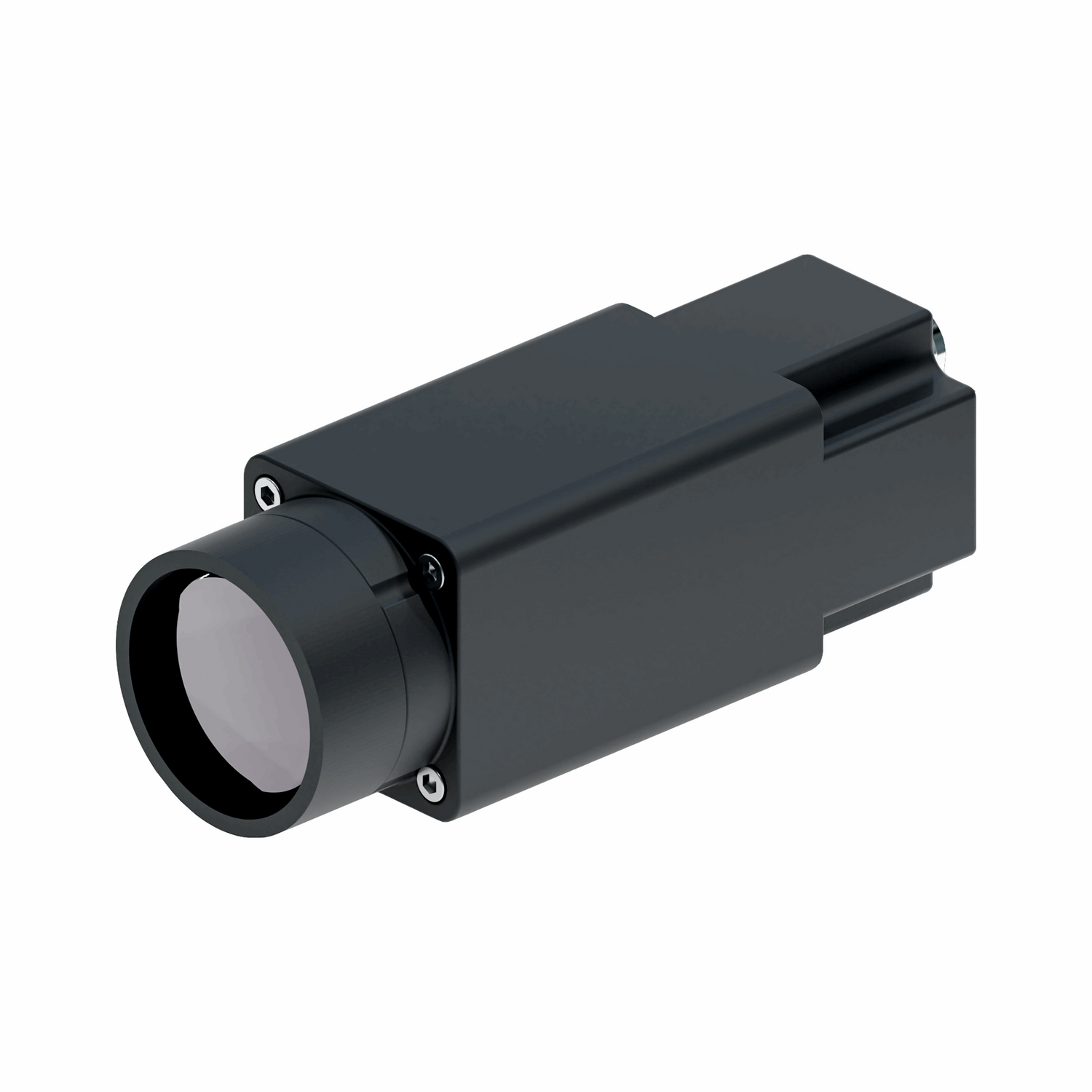

The extremely small outdoor thermal imaging camera is particularly easy to conceal due to its small size. Barely thicker than a thumb, it delivers images of the highest quality of 320x256 pixels. The standard version has a built-in socket for connecting a waterproof cable. This cable transmits the video data (PAL or NTSC) and supplies the device with power (5 - 18V). To save weight, the device can also be supplied with a highly flexible special cable with an open end or a connector according to customer requirements (eg Fischer connector).

Technical data

  • Spectral band / pixel pitch: 7.5µm – 13.5µm / 12µm uncooled microbolometer
  • Suitable for sunlight: Looking directly into the sun is possible for a short time
  • Filter mode: White Hot
  • Field of view: 92°
  • Input voltage: 5 – 18V
  • Polarity / Filter: White Hot
  • FFC (shutter): Flag shutter, corrected by software shutter
  • Operating / storage temperature: –20° to +60°C / –40° to +80°C

Specification
  • Abmessungen
    67 mm, 24 mm, 24 mm
  • Material
    Housing: anodized aluminum (7075), lens: germanium
  • Schutzklasse
    Water resistance: IP68, Maximum deployment altitude: 12km, Shock: 1,500g
  • Temperaturauflösung
    60mK
  • Sensorauflösung
    320x256 (9Hz)
  • Videoausgang
    PAL (standard), NTSC (possible), USB (special resolution)
  • Einsatzbereich
    -40° to +80°C

Lieferumfang

• TISCAM-3.90
