Andres Industries AG  |  SKU: 240334

TISCAM-3.34

4.580,00 €
incl. VAT Shipping calculated at checkout.

Versandinformationen

Versand innerhalb Deutschlands:
6,99€
Versandkostenfrei ab einem Warenkorbwert von mind. 99,-€

Versand innerhalb der EU und Partner
(EU, Kanada, USA, Australien, Neuseeland):
15,-€
Versandkostenfrei ab einem Warenkorbwert von mind. 99,-€

Versand außerhalb der EU:
50,-€

0 Product goes well with this item

Description

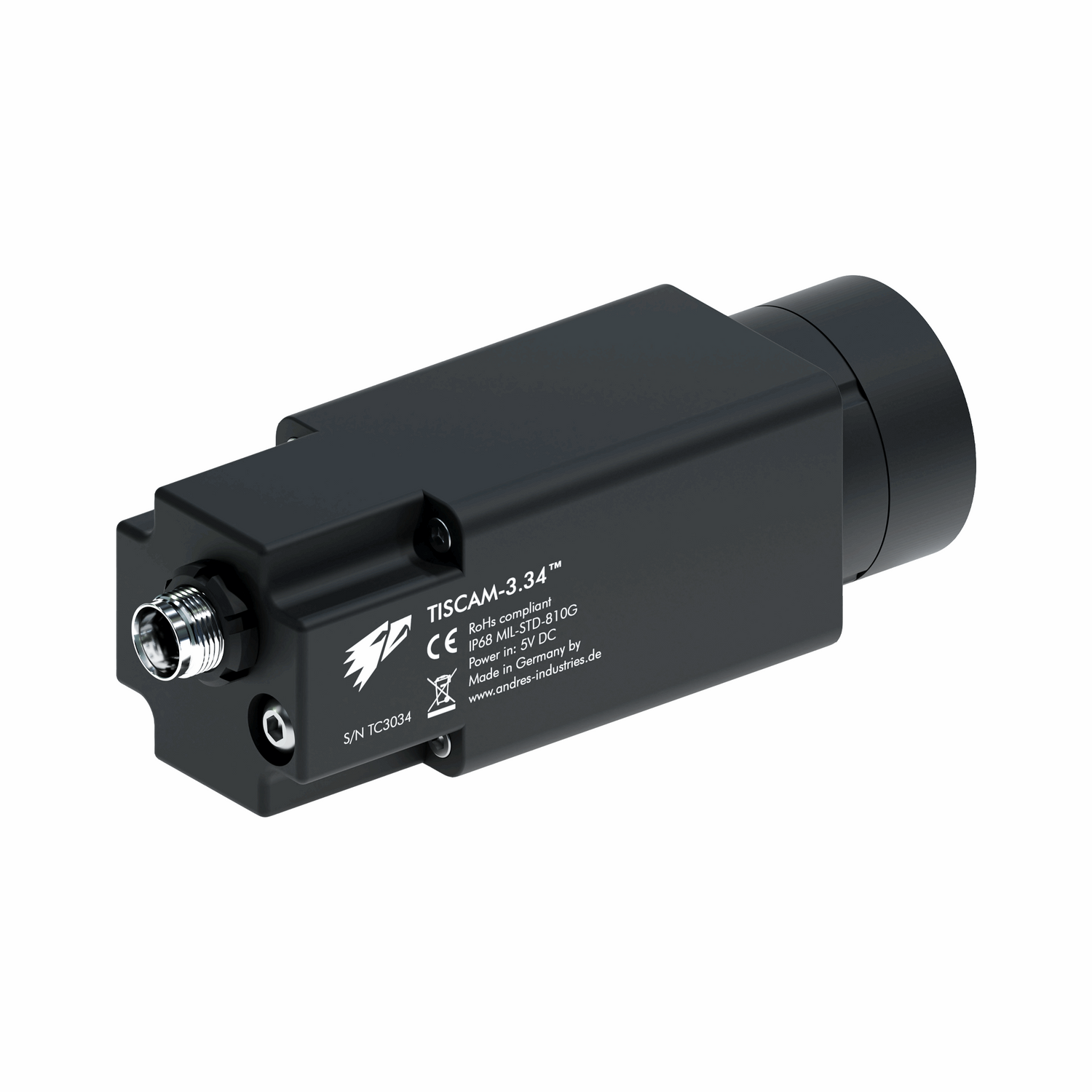

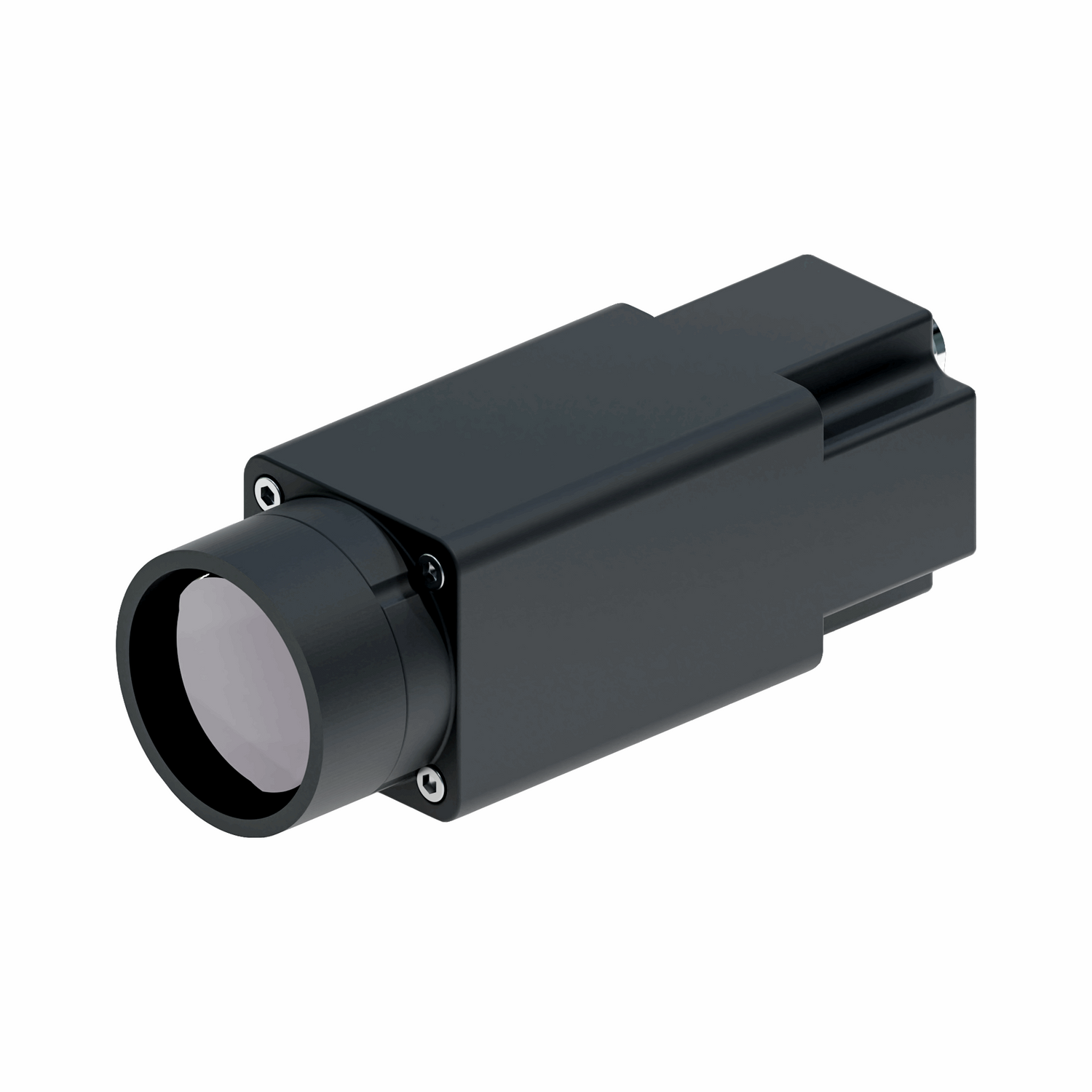

The extremely small outdoor thermal imaging camera is particularly easy to conceal due to its small size. Hardly thicker than your thumb, it delivers images of the highest quality of 320×256 pixels. The standard version has a built-in socket for connecting a waterproof cable. This transmits the video data (PAL or NTSC) and supplies the device with power.

  • Spectral band / pixel pitch: 7.5µm – 13.5µm / 12µm uncooled microbolometer
  • Suitable for sunlight: Looking directly into the sun is possible for a short time
  • Filter mode: White Hot (more filters on request)
  • Field of view: 34°
  • Input voltage: 5-12V
  • Polarity/Filter: White Hot
  • FFC (Shutter): Flag shutter corrected by software shutter
  • Operating / storage temperature: -20° to +60°C / -40° to +80°C
  • Maximum altitude: 12km

Specification
  • Abmessungen
    60 mm, 24 mm, 24 mm
  • Material
    Housing: anodized aluminum (7075), lens: germanium
  • Schutzklasse
    Water resistance: IP68, Water resistance: IP68
  • Temperaturauflösung
    60mK (40mK as special version)
  • Sensorauflösung
    320x256 (9Hz)
  • Videoausgang
    PAL (standard), NTSC (possible), USB (special resolution)
  • Einsatzbereich
    -40° to +80°C

Lieferumfang

• TISCAM-3.34
