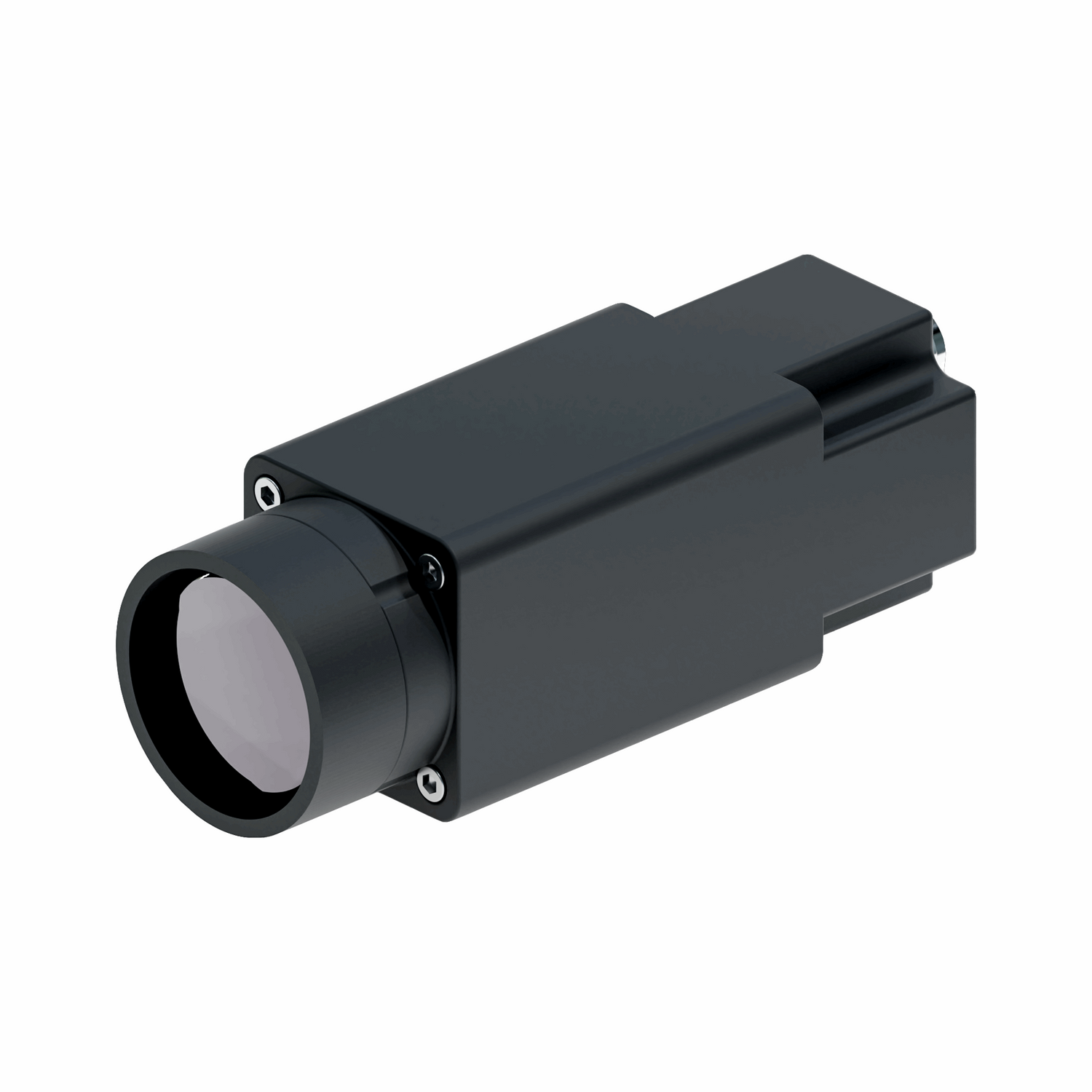

TISCAM-3.90

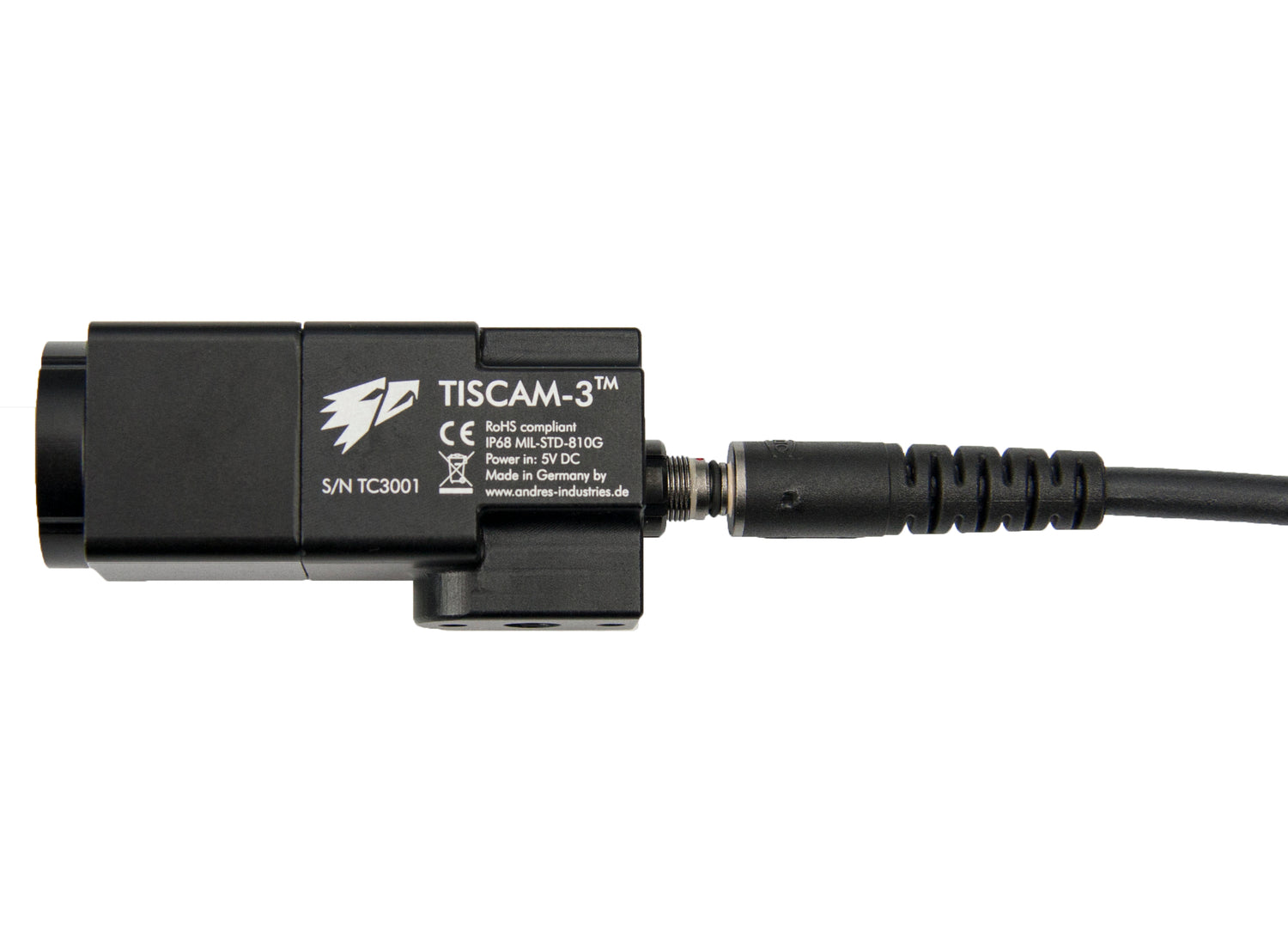

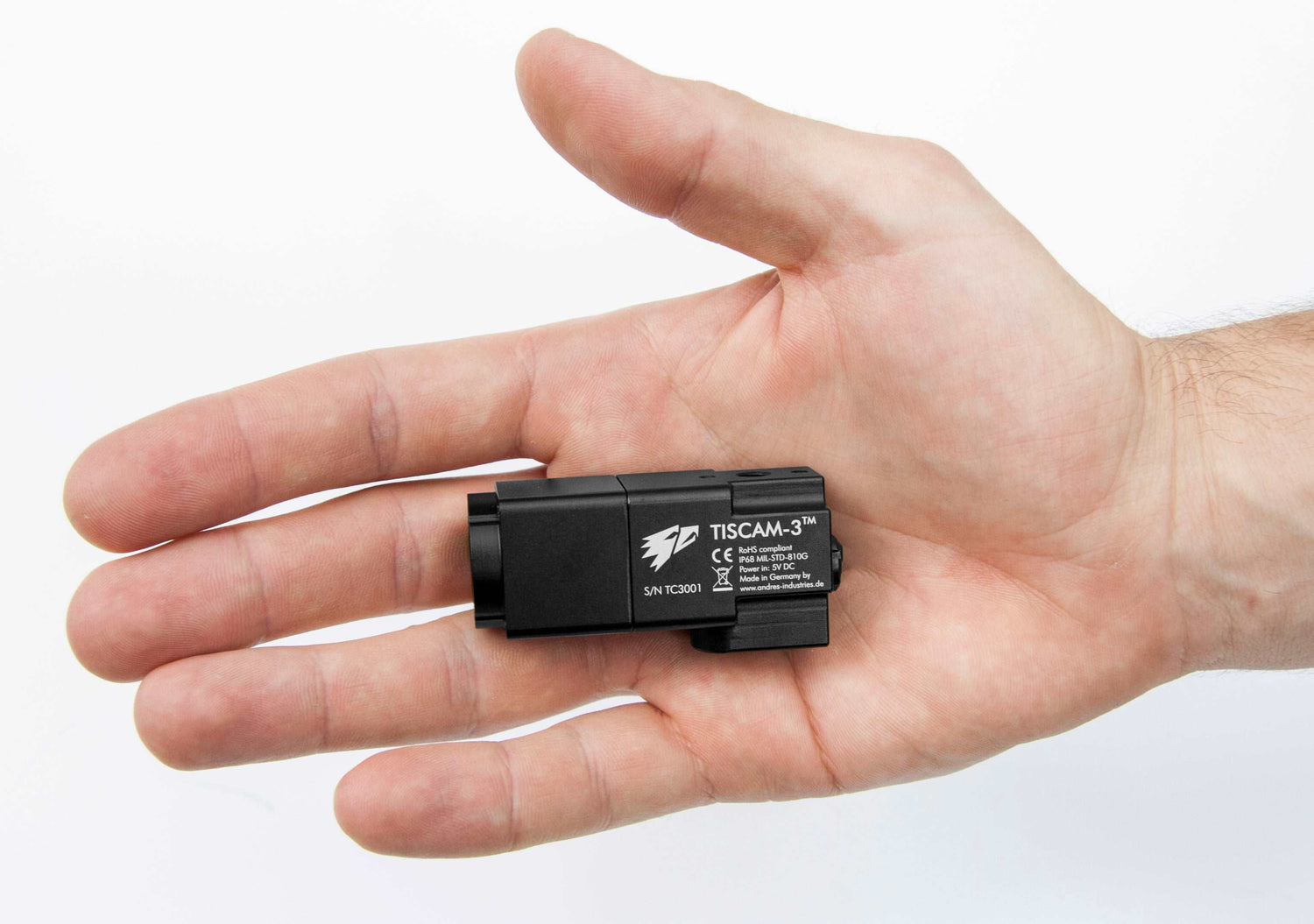

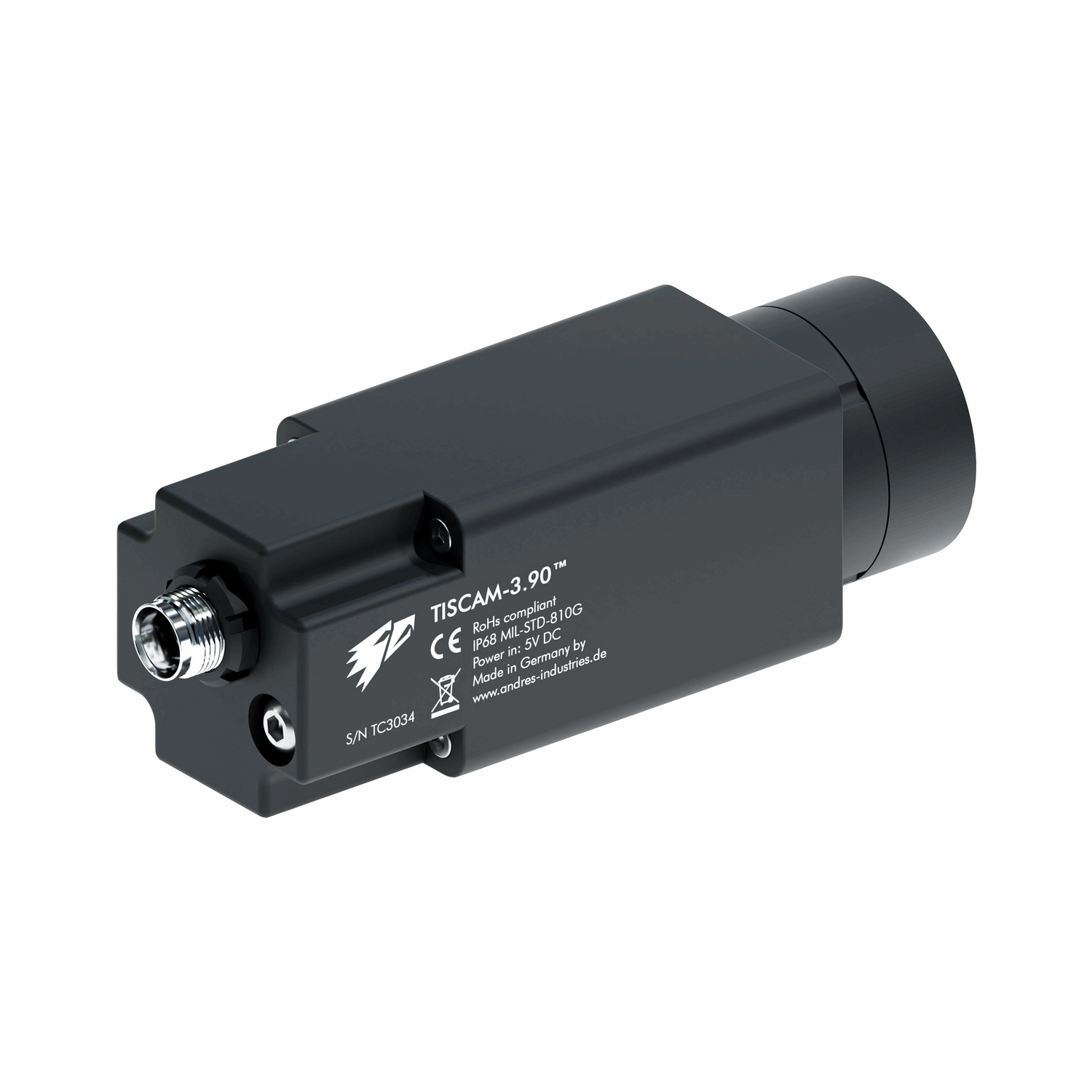

The extremely small outdoor thermal imaging camera is particularly easy to conceal due to its small size. Barely thicker than a thumb, it delivers images of the highest quality of 320x256 pixels. The standard version has a built-in socket for connecting a waterproof cable. This cable transmits the video data (PAL or NTSC) and supplies the device with power (5 - 18V). To save weight, the device can also be supplied with a highly flexible special cable with an open end or a connector according to customer requirements (eg Fischer connector).

Technical data

• Spectral band / pixel pitch: 7.5µm – 13.5µm / 12µm uncooled microbolometer
• Suitable for sunlight: Looking directly into the sun is possible for a short time
• Filter mode: White Hot
• Field of view: 92°
• Input voltage: 5 – 18V
• Polarity / Filter: White Hot
• FFC (shutter): Flag shutter, corrected by software shutter
• Operating / storage temperature: –20° to +60°C / –40° to +80°C

• TISCAM-3.90
