Andres Industries AG | SKU: 240411

TigIR-Z20

Name: TigIR-Z20
Brand: Andres Industries AG
SKU: 240411
Price: 9500.0 EUR
Availability: InStock

9.500 €

Tax included Shipping calculated at checkout.

Shipping Information

Shipping within Germany:
€6.99
Free shipping for a shopping cart value of at least €99

Shipping within the EU and partners
(EU, Canada, USA, Australia, New Zealand):
€15
Free shipping for a shopping cart value of at least €99

Shipping outside the EU:
€35

16 product(s) match this item

Description

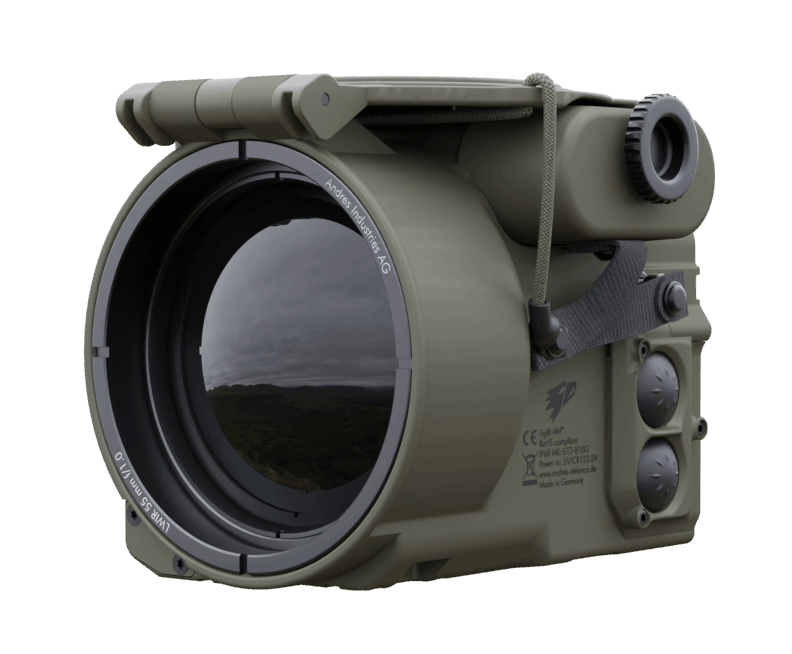

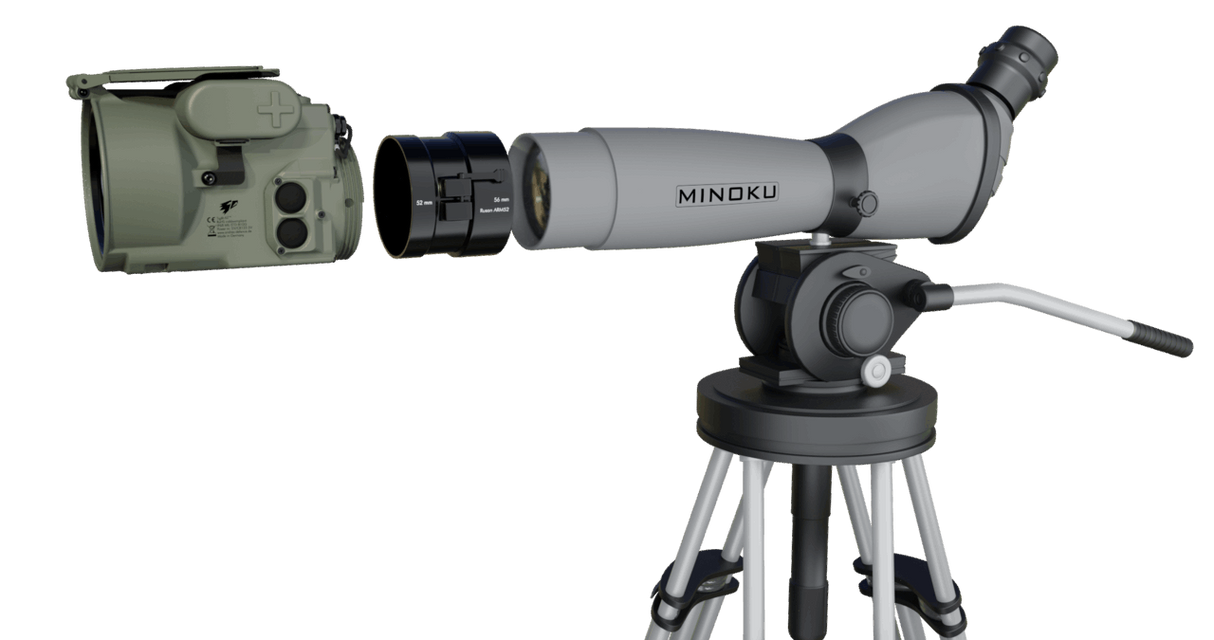

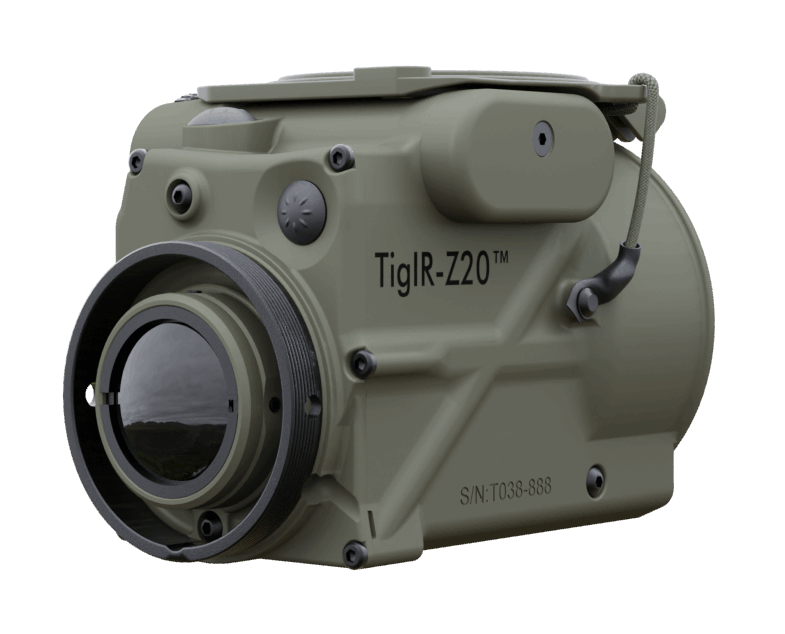

The TigIR-Z20™ is currently the lightest and smallest thermal imaging device with a 55 mm lens. No other device achieves a range (standing person) of 3000 m with such a short overall length of only 112 mm. These compact dimensions were made possible by the development of a specially folded eyepiece. This allows the device to be used with various optics (3-6x magnification) and similar systems without any loss of image quality. The entire housing is milled from a single piece of high-strength aluminum, hard-anodized, and finished with a highly resistant Cerakote coating. This allows the TigIR™ to withstand even hard impacts in harsh environments – while remaining remarkably lightweight at only 527 g.

Specifications

Dimensions

112 mm, 82 mm, 80 mm
Material

Aviation aluminum with Magpul Foliage green ceramic coating
Sensor resolution

640×512 (60Hz)
Video output

PAL/NTSC

scope of delivery

• TigIR-Z20
• Threaded cap
• 4 CR123 batteries
• Manual
• Large outdoor case
• Cleaning cloth
• Quick start Guide

Information Product Safety

Andres Industries AG

Weißenseer Weg 37

13055, Berlin

Deutschland

Kontakt

Interactive display

For the comparison setup, at least 2 devices were mounted on a plate. We then point these at the same object. This makes the differences very clear. The videos also always contain information about the weather conditions. We usually try to take the recordings in the worst possible weather so that the performance of the new technology is more visible.
